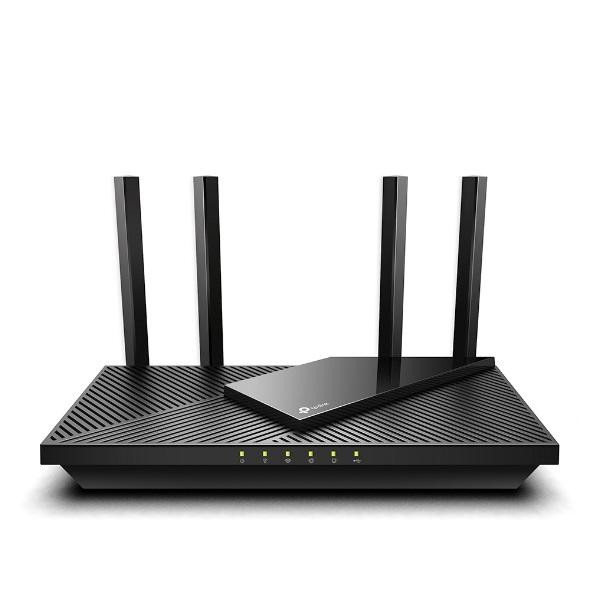

TP-Link Router WiFi AX3000 - Archer AX55 (574Mbps 2,4GHz + 2402Mbps 5GHz; 4port 1Gbps; WPA3; USB3.0; OFDMA; Wifi-6)

VEZETÉK NÉLKÜLI

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX3000

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity High

Dual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

4 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor Dual-Core CPU

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support 1× USB 3.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi/WPS Button

Power On/Off Button

Reset Button

Power 12 V ? 2 A

BIZTONSÁG

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

Service Kits HomeShield

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in

(261.1 × 134.5 × 41.0 mm)

Package Contents Wi-Fi Router Archer AX55

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)

FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity 5GHz:

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm

11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm

11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm

11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm

11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm

2.4GHz:

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB

11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm

11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm
