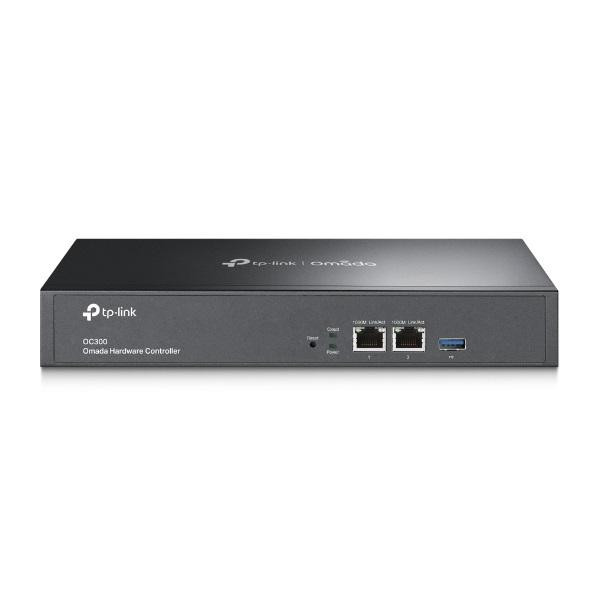

TP-Link Vezérlő - Omada Cloud Controller OC300 (Omada eszközök távoli menedzsmentjéhez; af/at PoE)

Hardver jellemzők

Csatlakozások  10/100Mbps Ethernet Port*2

USB 2.0 Port*1

Micro USB Port*1

Hálózati tápegység  802.3af/at PoE or Micro USB(DC 5V/Minimum 1A)

Dimensions  3.9×3.9×1.0in. (100×98×25mm)

JELLEMZŐK

Vezeték nélküli funkciók  L3 Management

Multi-SSID

Load Balance

Band Steering

Airtime Fariness

Beamforming

Rate Limit

Wireless Schedule

QoS

Vezeték nélküli biztonság  Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

AP vezérlés  Automatic Discovery

Unified Configuration

Reboot Schedule

Batch Firmware Upgrade

LED ON/OFF

Hitelesítés  Captive Portal

Vezérlés

Omada App  Yes

Centralized Management

• Up to 500 Omada access points, JetStream switches, and SafeStream routers*

• Up to 15,000 clients

*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300

Cloud Access  Yes

L3 Management  Yes

Multi-site vezérlés  Yes

Management Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

Egyéb jellemzők

Tanúsítványok  CE, FCC, RoHS

Csomagolás tartalma  Omada Cloud Controller

OC200

Quick Installation Guide

Ethernet Cable

Rendszerkövetelmény  Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Környezet

• Operating Temperature: 0–50 ? (32–122 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
