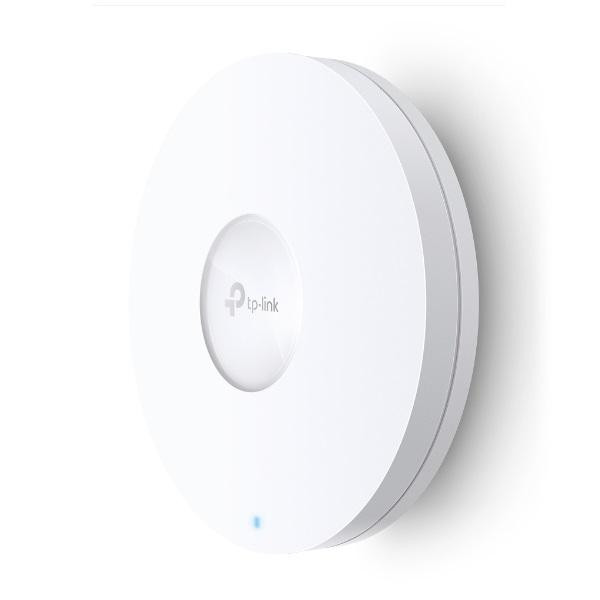

TP-Link Access Point WiFi AX3600 - Omada EAP660-HD (1148Mbps 2,4GHz + 2402Mbps 5GHz; 1Gbps; at PoE; 4x5dBi antenna)

HARDWARE FEATURES

Interface  1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button  Reset

Power Supply  • 802.3at PoE

• 12 V DC

Power Consumption  • EU: 18.5 W

• US: 21.5 W

Dimensions ( W x D x H )  9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type  Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5 dBi

Mounting  Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards  IEEE 802.11ax/ac/n/g/b/a

Frequency  2.4 GHz and 5 GHz

Signal Rate  • 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 1148 Mbps

Wireless Functions  • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security  • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power  • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT

Omada App  Yes

Centralized Management  • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access  Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts  Yes

LED ON/OFF Control  Yes

Management MAC Access Control  Yes

SNMP  v1, v2c, v3

System Logging Local/Remote Syslog  Local/Remote Syslog

SSH  Yes

Web-based Management  HTTP/HTTPS

L3 Management  Yes

Multi-site Management  Yes

Management VLAN  Yes

OTHERS

Certification  CE, FCC, RoHS

Package Contents  • EAP660 HD

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

System Requirements  Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment  • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
